Charge Power Management System
Charge Power Management System is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Description
Description
The CHARGE Marine Power Management Station gives you power where, how and when you need it.CHARGE does the work of a traditional battery charger, a charge-on-the-run, plus an emergency start system all in one compact unit. CHARGE automatically devotes more power to the batteries that need it the most for maximum efficiency, giving you more time on the water.
Features:

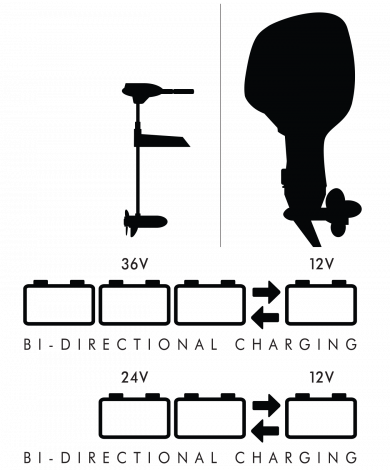

Automatically moves power back and forth between cranking and trolling batteries
Displays battery voltage and status data on your smart phone or Lowrance unit (requires CM2 GATEWAY).
Complete battery maintenance - uses float mode when plugged in at home
An Intelligent Power Management System

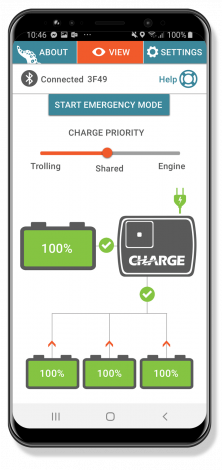

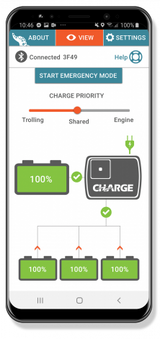

This 500-watt power station delivers up to 40 amps of charging power to the cranking battery and up to 25 amps to the trolling batteries and works with multiple battery types including lead acid, AGM, GEL, lithium or TPPL. With the C-Monster app, you’re able to monitor your battery status in real-time and prioritize either the trolling or cranking batteries when recharging. The CHARGE will automatically maintain minimum power levels based on your preference settings.
Compact Design

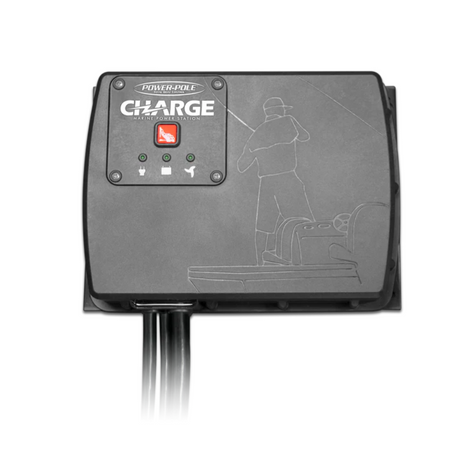

The main CHARGE unit is 10.62x7.95x2.78 inches in size and weighs under nine pounds making it small enough to fit into your boat with ease. Since the CHARGE is an all-in-one unit it also can take the place of current chargers and jump start systems, freeing up even more valuable space on your vessel.
Intuitive Display Options
The CHARGE automatically displays battery status using an easy-to-read LED light system or you can receive more in-depth battery voltage and status data on your smart phone or compatible Gateway-equipped MFD.
Simple to Install
The CHARGE can be installed quickly and easily with just four screws. The easy-to-follow wiring instructions uses your boat’s existing shore power and alternator system meaning there is no complicated splicing or advanced electrical knowledge needed. Just use the diagram to configure your boat’s battery banks.
Built-In Safety Features
From the integrated heatsink cooling system to the temperature sensors built into the wiring sheath, the CHARGE was engineered for safe operation even under the most demanding conditions. The CHARGE is also constructed to IP65 waterproof standards to avoid possible water intrusion into the unit’s inner components.
Wiring Sheath
Compatible MFD's
(Requires C-Monster Gateway.)
Simrad
NSO Evo3
NSO Evo2
NSS Evo3
GO 5 XSE
GO 7 XSR
GO 9 XSE
GO 12 XSE
IDS
All 2020
and newer MFD's
Lowrance
HDS Live
HDS Carbon
Elite Ti2
Mercury Vessel View
903
703
502
Works With Existing MFD's
(Sold Separately.)
With the C-Monster GATEWAY, you can connect and control your CHARGE from your LOWRANCE, SIMRAD or Mercury Vessel View displays.
